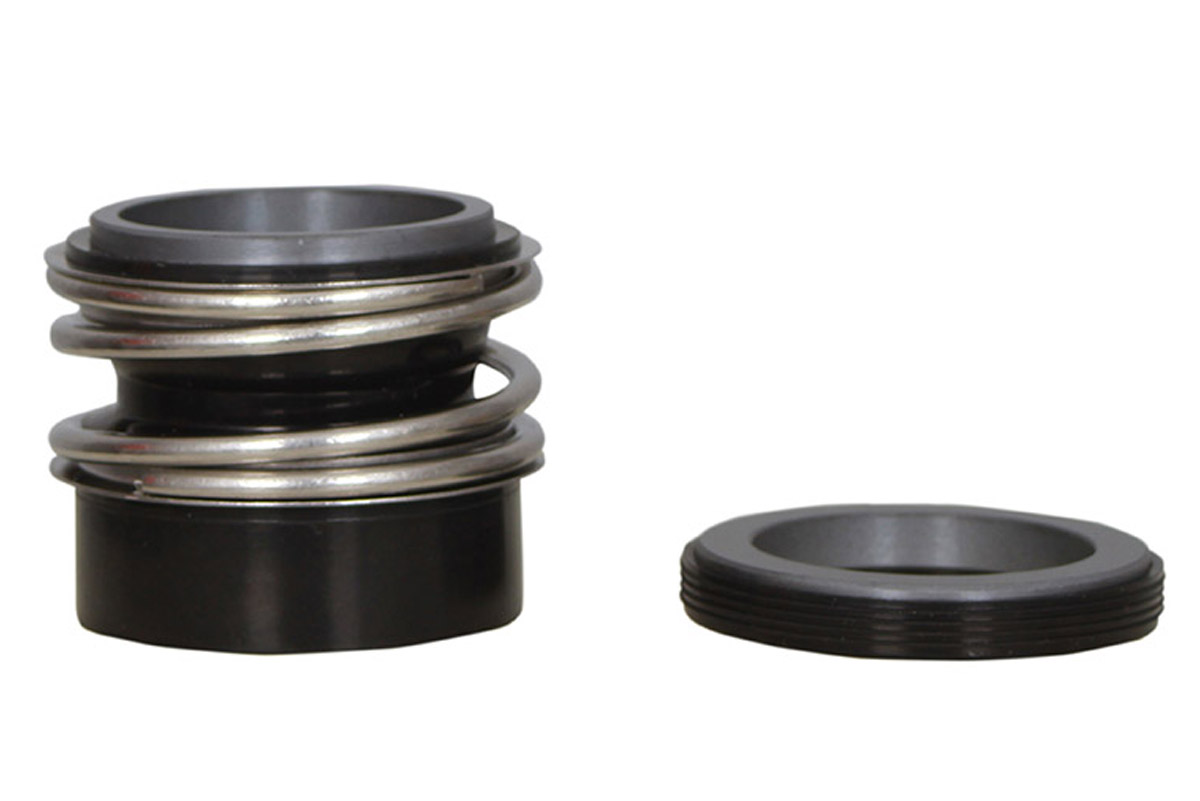

LN 113

Parça Tanımları

R1-Döner Eleman Yüzeyi
R2-Elastomer Körük
R3-Tutucu
R4-Yay
S1-Sabit Eleman Yüzeyi

Ürün Yapısı

Tasarım Özellikleri

Balansız tip
Tekli
Dönme yönünden bağımsız
Körüklü

Çalışma Limitleri

Mil Çapı(mm):6-100
Basınç (MPa):1.3
Sıcaklık ( C):-20~200
Hızı (m/s):12

Salmastra Parçaları Malzemeleri

R1: Silisyum karbür (Q2 yada Q1),Karbon grafit(B),tungsten karbür(U1)
S1:Seramik(V), Silisyum karbür (Q2 yada Q1),Karbon grafit(B),tungsten karbür(U1) Cr-Mo Çelik
R2,S2:NBR, Viton, EPDM
R3,R4; 304, 316, 316 Ti paslanmaz çelik

Sabit Eleman Tipleri

N6,N9, N60 (DIN 24960)
N50, N4

Ölçüler

			LN 101-112-113 Dimentions
d	d3	d6	d7	d8	d11	d12	d14	d16	l	l2	l3	l8	l9	l12	l14	l10	l28	l29
95	107.0	110	120	4	111.6	120.3	96.5	127.00	46.0	51.0	76.0	25.2	17.2	17.0	15.8	15.0	14.0	20.0
90	102.0	105	115	4	105.2	114.0	93.5	123.85	45.0	51.0	76.0	26.2	18.2	16.0	14.8	15.0	14.0	20.0
85	96.0	100	110	4	100.2	109.0	87.0	117.50	41.0	46.0	76.0	26.2	18.2	16.0	14.8	15.0	14.0	20.0
80	90.5	95	105	4	95.2	104.0	84.0	114.30	40.0	48.0	78.0	26.2	18.2	16.2	15.0	13.0	12.0	20.0
75	85.5	88	97	4	90.2	99.0	77.5	101.60	40.0	48.7	68.7	26.0	18.0	15.2	14.0	12.5	11.3	20.0
70	80.0	83	92	4	93.0	92.0	71.0	95.25	40.0	48.7	68.7	26.0	18.0	14.2	13.0	12.5	11.3	16.0
68	78.0	81	90	4	82.7	91.5	71.0	95.25	40.0	41.2	68.7	26.0	18.0	14.9	13.7	12.5	11.3	16.0
65	75.0	77	85	4	76.5	85.4	68.0	92.10	40.0	41.5	69.0	23.0	15.0	14.2	13.0	12.0	11.0	16.0
60	70.0	72	80	4	71.5	80.4	61.5	79.40	38.0	41.5	59.0	23.0	15.0	14.5	13.3	12.0	11.0	16.0
58	67.2	70	78	4	69.5	78.4	61.5	79.40	37.0	41.5	59.0	23.0	15.0	14.5	13.3	12.0	11.0	13.5
55	64.2	67	75	4	66.5	75.4	58.5	76.20	35.0	36.5	59.0	23.0	15.0	14.5	13.3	12.0	11.0	13.5
53	62.2	65	73	4	63.8	72.3	55.5	73.05	33.0	36.5	59.0	23.0	15.0	13.5	12.3	12.0	11.0	13.5
50	58.8	62	70	4	60.8	69.3	52.0	69.85	30.5	38.0	50.5	23.0	15.0	12.8	11.6	10.5	9.5	13.5
48	56.8	59	66	4	59.7	68.4	49.0	66.70	30.5	36.0	51.0	22.0	14.0	12.8	11.6	10.0	9.0	12.0
45	53.8	56	63	4	55.3	64.0	46.0	63.50	30.0	36.0	51.0	22.0	14.0	12.8	11.6	10.0	9.0	12.0
42	51.8	54	61	4	53.3	62.0	46.0	63.50	30.0	36.0	51.0	22.0	14.0	13.2	12.0	10.0	9.0	12.0
43	51.8	54	61	4	53.3	62.0	46.0	63.50	30.0	36.0	51.0	22.0	14.0	13.2	12.0	10.0	9.0	12.0
40	48.8	51	58	4	52.2	58.0	42.5	60.35	30.0	36.0	46.0	22.0	14.0	11.8	10.8	10.0	9.0	12.0
38	46.2	49	56	4	49.2	55.0	39.5	57.15	30.0	36.0	46.0	22.0	14.0	11.3	10.3	10.0	9.0	12.0
35	43.2	44	50	3	46.2	52.0	36.5	54.00	28.5	36.0	47.5	19.5	11.5	12.0	11.0	8.5	7.5	12.0
33	40.2	42	48	3	44.2	50.0	36.5	54.00	27.5	35.0	47.5	19.5	11.5	12.0	11.0	8.5	7.5	12.0
32	40.2	42	48	3	42.2	48.0	32.5	50.80	27.5	35.0	47.5	19.5	11.5	11.5	10.5	8.5	7.5	12.0
30	37.0	39	45	3	39.2	45.0	32.5	50.80	26.5	35.0	42.5	19.5	11.5	11.5	10.5	8.5	7.5	12.0
28	35.0	37	43	3	36.0	42.0	9.5	47.65	26.5	35.0	42.5	19.5	11.5	10.0	9.0	8.5	7.5	12.0
25	31.2	34	40	3	32.0	38.0	26.5	40.50	23.0	32.5	42.5	19.5	11.5	8.5	7.5	8.5	7.5	10.5
24	31.2	33	39	3	32.0	38.0	26.5	40.50	22.5	32.5	42.5	19.5	11.5	8.5	7.5	8.5	7.5	10.5
22	27.7	31	37	3	29.5	35.0	23.0	37.30	21.5	30.0	37.5	19.5	11.5	8.5	7.5	8.5	7.5	10.5
19	26.7	29	35	3	29.5	35.0	20.0	34.15	21.5	30.0	37.5	19.5	11.5	8.5	7.5	8.5	7.5	10.5
20	26.7	29	35	3	29.5	35.0	21.5	35.70	21.5	30.0	37.5	19.5	11.5	8.5	7.5	8.5	7.5	10.5
18	23.7	27	33	3	24.0	30.0	20.0	34.15	19.5	30.0	37.5	19.5	11.5	9.0	8.0	8.5	7.5	10.5
16	21.0	23	27	3	22.0	28.0	17.0	30.95	17.0	28.4	33.4	17.5	10.0	8.5	7.5	7.5	6.6	10.5
15	20.8	23	27	3	20.5	24.6	17.0	30.95	17.0	28.4	33.4	17.5	10.0	7.5	6.6	7.5	6.6	10.5
14	19.7	21	25	3	20.5	24.6	17.0	30.95	17.0	28.4	33.4	17.5	10.0	6.5	5.6	7.5	6.6	10.5
12	17.7	19	23	3	17.5	21.6	13.5	27.80	15.0	25.9	33.4	17.5	10.0	6.5	5.6	7.5	6.6	9.0
10	15.7	17	21	3	15.5	19.2	11.0	24.60	14.5	25.9	33.4	17.5	10.0	7.5	6.6	7.5	6.6	9.0

100	112.0	115	125	4	114.5	123.3	103.0	133.35	47.0	51.0	76.0	25.2	17.2	17.0	15.8	15.0	14.0	20.0
